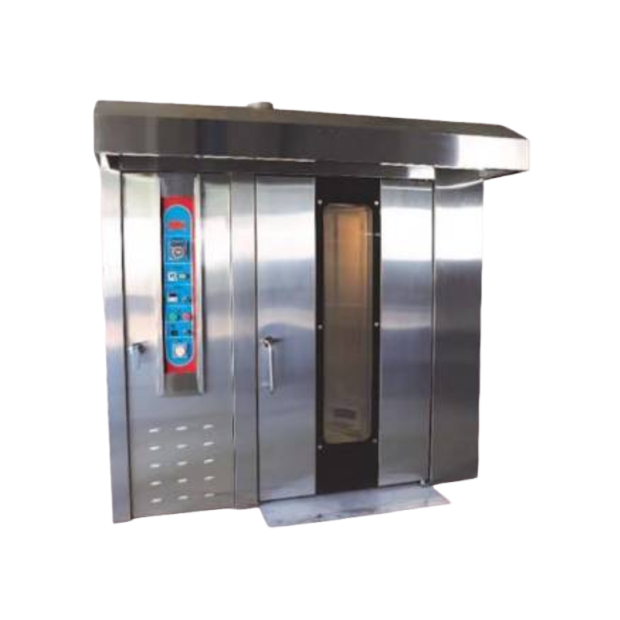

CF-102 Rotary Rack Oven

CF-102 Rotary Rack Oven

The CF-102 rotary rack oven is designed for high-volume production, using hot-air circulation to evenly deliver heat to every side of the product. The airflow speed—low or high—can be freely adjusted to achieve the desired baking results.
It is suitable for baking bread and cakes, powered by either gas or diesel, and includes a built-in steam function that allows users to set baking times and reminders. The oven features excellent body sealing for consistent temperature and efficient heat retention.
An optional steam system can also be installed according to production needs, making it ideal for baking croissants, French bread, and other bakery products that require steam during the baking process.
CF-102 Rotary Rack Oven
/
DETAIL

CF-102 Rotary Rack Oven

Hot-Air Rotary Oven｜16 trays / rack｜Gas / Diesel｜Built-in Steam｜3PH 220/380V 50/60Hz

Hot-Air Rotary OvenRotary Rack OvenIndustrial Bread OvenOven for Food FactoriesAdjustable AirflowSteam Function
Even Heating: Hot-air circulation with adjustable airflow ensures consistent color and uniform baking.
Steam Baking: Built-in steam system, ideal for croissants, baguettes, and other bakery products requiring steam.
Production Capacity: 16 trays per rack, supports gas/diesel heating; excellent sealing and intuitive operation.


Product Description

CF-102 Rotary Rack Oven

The CF-102 rotary rack oven is designed for mass production, using hot-air circulation to evenly transfer heat to every side of the product. The airflow speed can be freely adjusted to achieve the desired baking result. Suitable for baking bread and cakes, it supports both gas and diesel heating, and includes a built-in steam function with adjustable baking time and reminder. The oven features excellent body sealing for stable temperature performance. An optional steam system can be added as needed — ideal for baking croissants, French bread, and other products that require steam.

Specifications:

Model Power Fuel Baking Capacity Net Weight Dimensions (W×D×H)
CF-102 2.625 KW / 35 KW Gas / Diesel 16 trays / rack 1400 KG 184 × 140 × 220 cm

Rack size: custom-designed based on tray dimensions; two racks included per oven.
Power supply: 3 PH 220/380V 50/60 Hz

Machine Features:

  • Combustion type: uses imported high-efficiency burner for energy savings and stability. Electric type uses Taiwan-made heating elements for consistent performance.
  • Generates high-humidity steam using boiler principles, maintaining stable temperature up to 600°C.
  • Rotary fan-wheel (hot-air) design for stable, durable performance.
  • Stainless-steel exterior with heat-resistant glass window allows clear visibility during baking.
  • Detachable rack tracks for easy cleaning and maintenance; automatic lift door handle with concealed switch design.
  • Equipped with automatic heat buffer and explosion-proof safety system, overheat alarm, and refined industrial appearance.
CF-102 Rotary Rack Oven appearance and dimensions｜Hong Cheng Food Machinery ※ Exterior dimensions illustration
